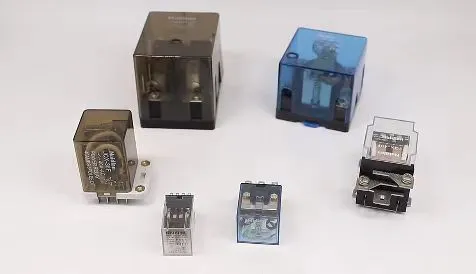

Relé de alta potência Naidian Jqx-38f-3z 40A/30A

Informação básica

Modelo Nº.	JQX-38F-3Z
Tamanho	Miniatura
Tipo	Contatores AC
Cor	Concha Transparente Marrom
Certificações	CCC
garantia	Um ano
Temperatura ambiente	-10ºC~+55ºC
Pacote de transporte	caixa
Especificação	CE
Marca comercial	Naidian
Origem	Zhejiang China
Capacidade de produção	10000

Descrição do produto

Relé de potência PictureJQX-38F, relé de potência grande, relé1. Capacidade de contato: 30A/40A/80A 250VAC2. Tipo de montagem: Soquete e PCB3. Potência da bobina:

Dimensões de esboço e diagrama de fiação

Formulário de Contato	1Z,1H,1D,2Z,2H,2D,3Z,3H,3D
Contato de resistência	30mΩ (1A 6VDC)
Capacidade de contato	30A/40A/80A 250VAC 2HP 250VAC

Características

Resistência de isolamento	1000MΩ. 500VCC
Rigidez dielétrica	Entre a bobina e os contatos 2500VAC 1 minuto
	Entre a bobina e os contatos 1200VAC 1 minuto
Tempo de operação/liberação	25ms / 15ms
Tipo de terminal	Soquete e PCB

Energia da BOBINA

Potência nominal da bobina

DC2W~2,5W AC4,5VA

dados da bobina

Tensão Nominal VCC	Tensão de entrada VDC	Tensão de liberação VDC	Resistência da bobina Ω: ± 10%		Tensão Nominal VAC	Tensão de entrada VDC	Tensão de liberação VDC	Resistência da bobina Ω: ± 10%
12	8.40	1.20	57		12	9,60	3,60	10
24	16.8	2.40	230		24	19h20	7.20	40.3
48	33.6	4,80	2000		110	88,00
